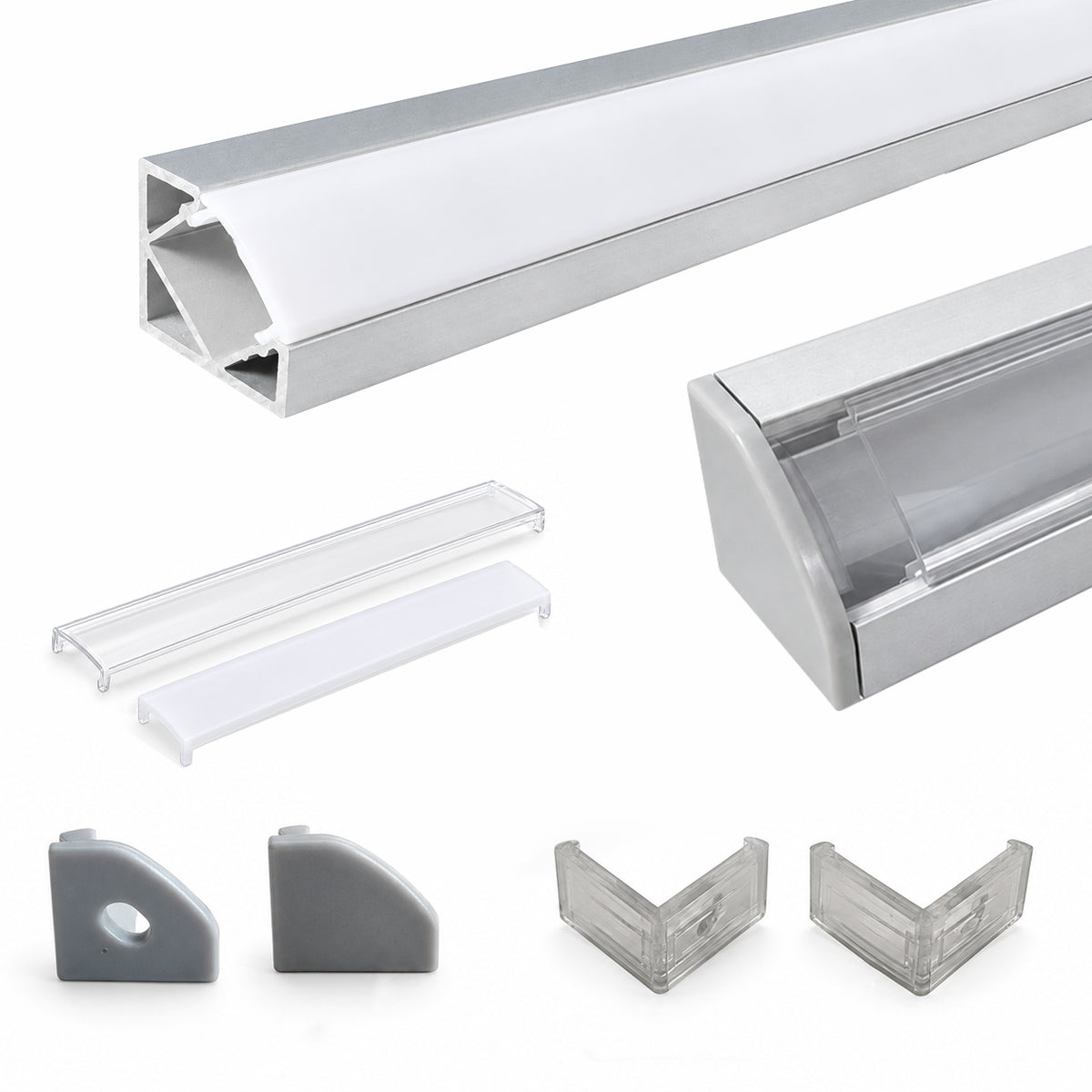

Silver V03 18x18mm V-Shape Corner-Mount LED Aluminum Channel, 12mm Inner Width, with Cover, End Caps & Mounting Clips
Key Features
- V-Shape Corner-Mount Design: The V03 aluminum channel features an 18 × 18mm angled profile designed for corner installations, helping position LED strip lighting neatly along cabinet corners, wall joints, shelving, furniture, and other 90-degree mounting areas.
- Fits LED Strips Up to Approx. 12mm Wide: With an inner width of approximately 12mm, the V03 is suitable for many commonly used LED strip lights within the compatible width range.
- Larger Corner Profile: Compared with more compact corner channels, the 18 × 18mm profile provides a slightly larger exterior size while maintaining a clean angled installation for directional LED lighting.
- Angled Light Direction: The corner-mount profile helps direct light outward from the installation corner, making it suitable for cabinet lighting, display lighting, furniture lighting, and architectural accent applications.

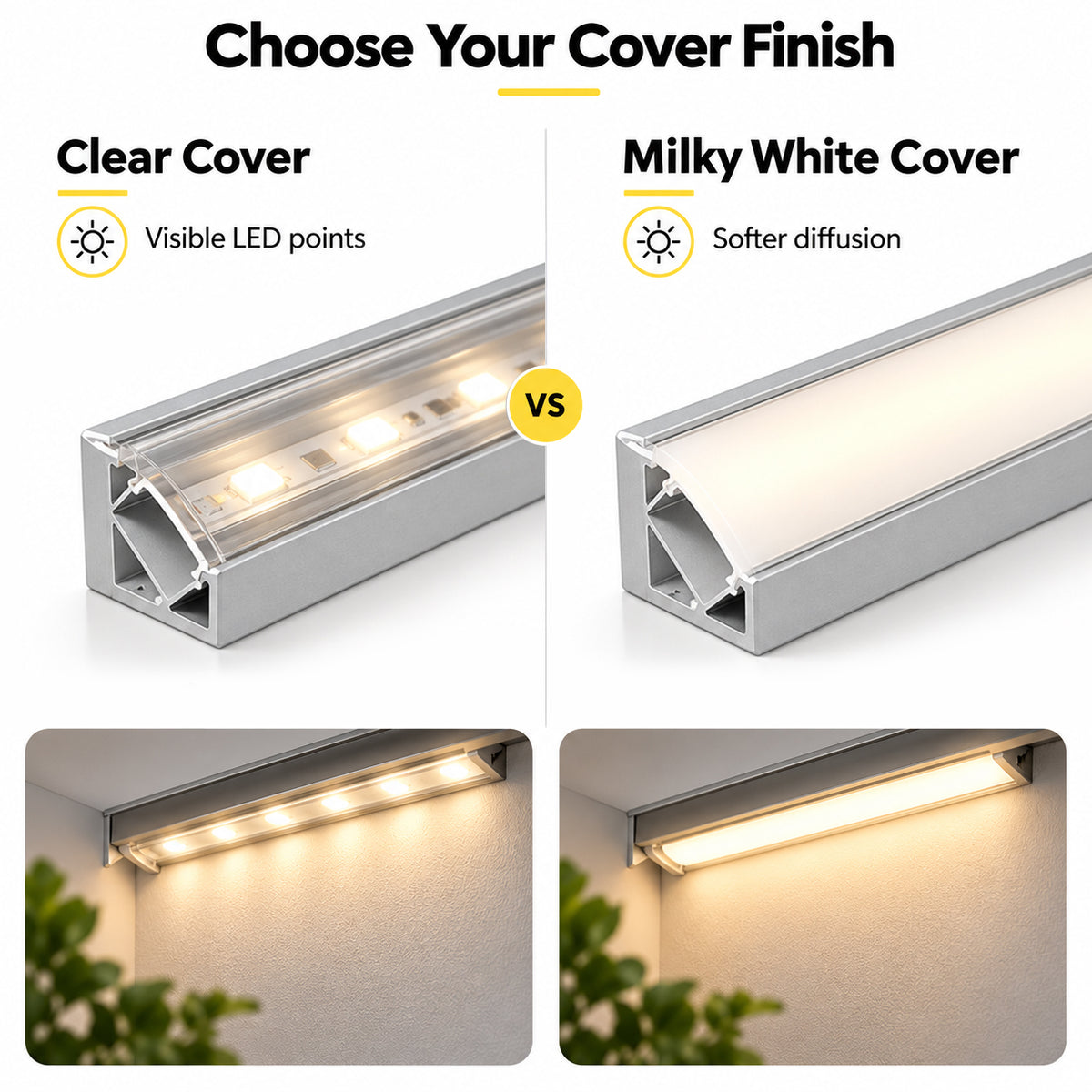

- Clear or Milky White Cover: Choose a clear cover for a more direct lighting appearance or a milky white cover for softer diffusion and a cleaner finished look.
- Multiple Length and Pack Options: Available in 1-meter, 2-meter, and 3-meter lengths with 5, 10, 25, or 50 channels per pack to support projects of different sizes.

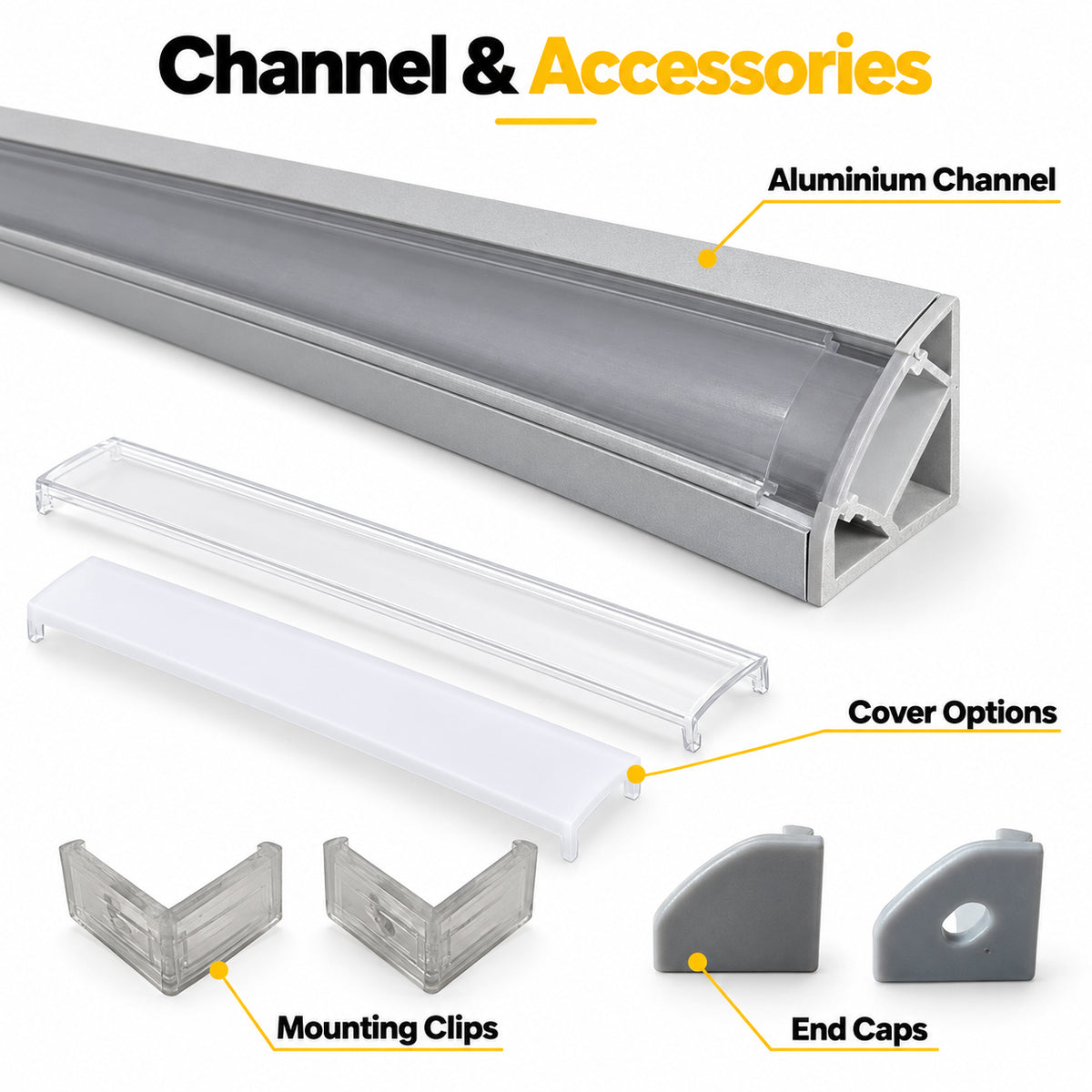

- Complete Mounting Accessories: Each channel includes one pair of end caps, while mounting clips, screws, and expansion plugs are supplied according to the selected channel length and pack size.

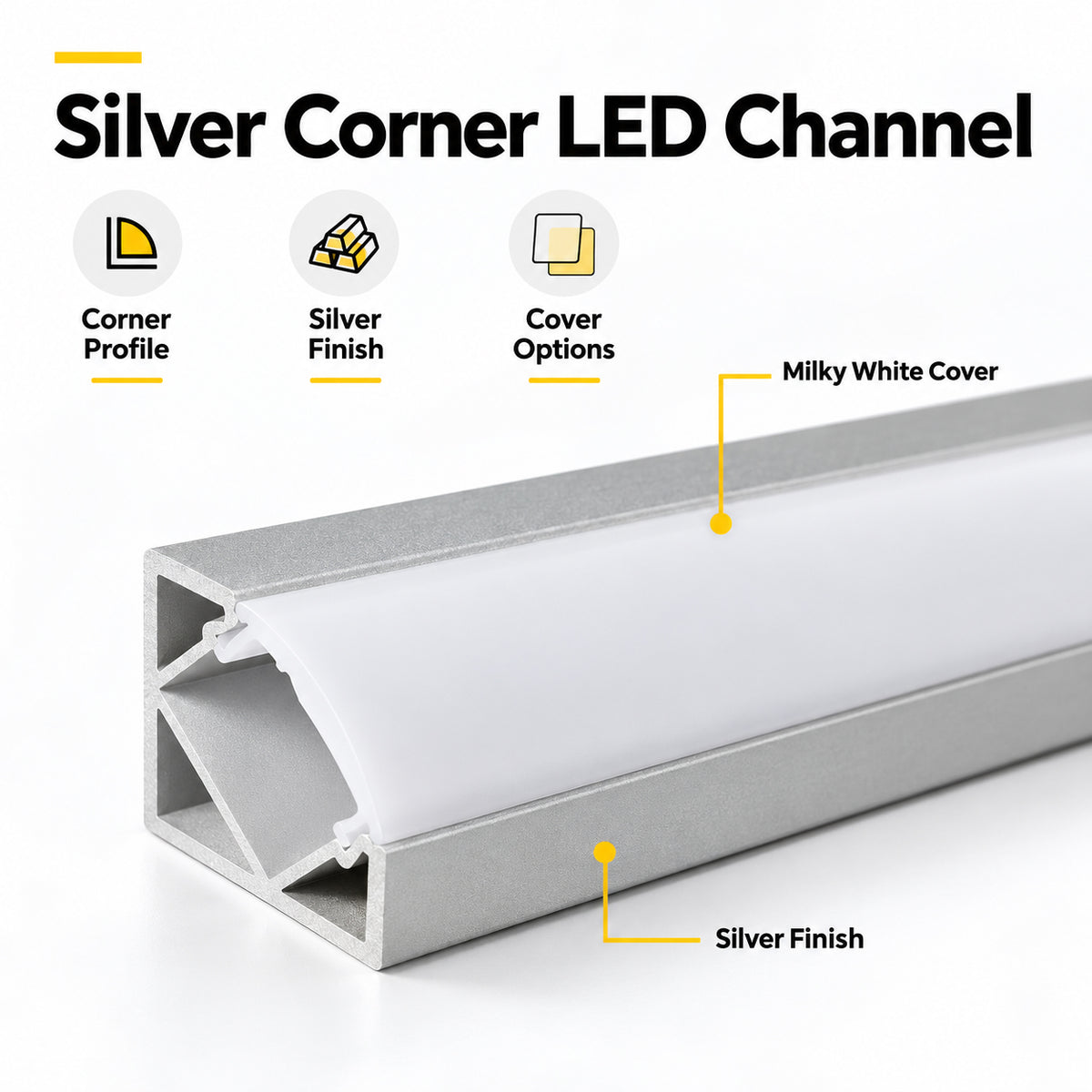

- Silver Finish: The silver aluminum finish provides a clean, neutral appearance that works well with cabinetry, shelving, furniture, display fixtures, architectural details, and modern interior lighting projects.
Specifications
- Model: V03
- Product Type: V-Shape Corner-Mount LED Aluminum Channel
- Finish: Silver

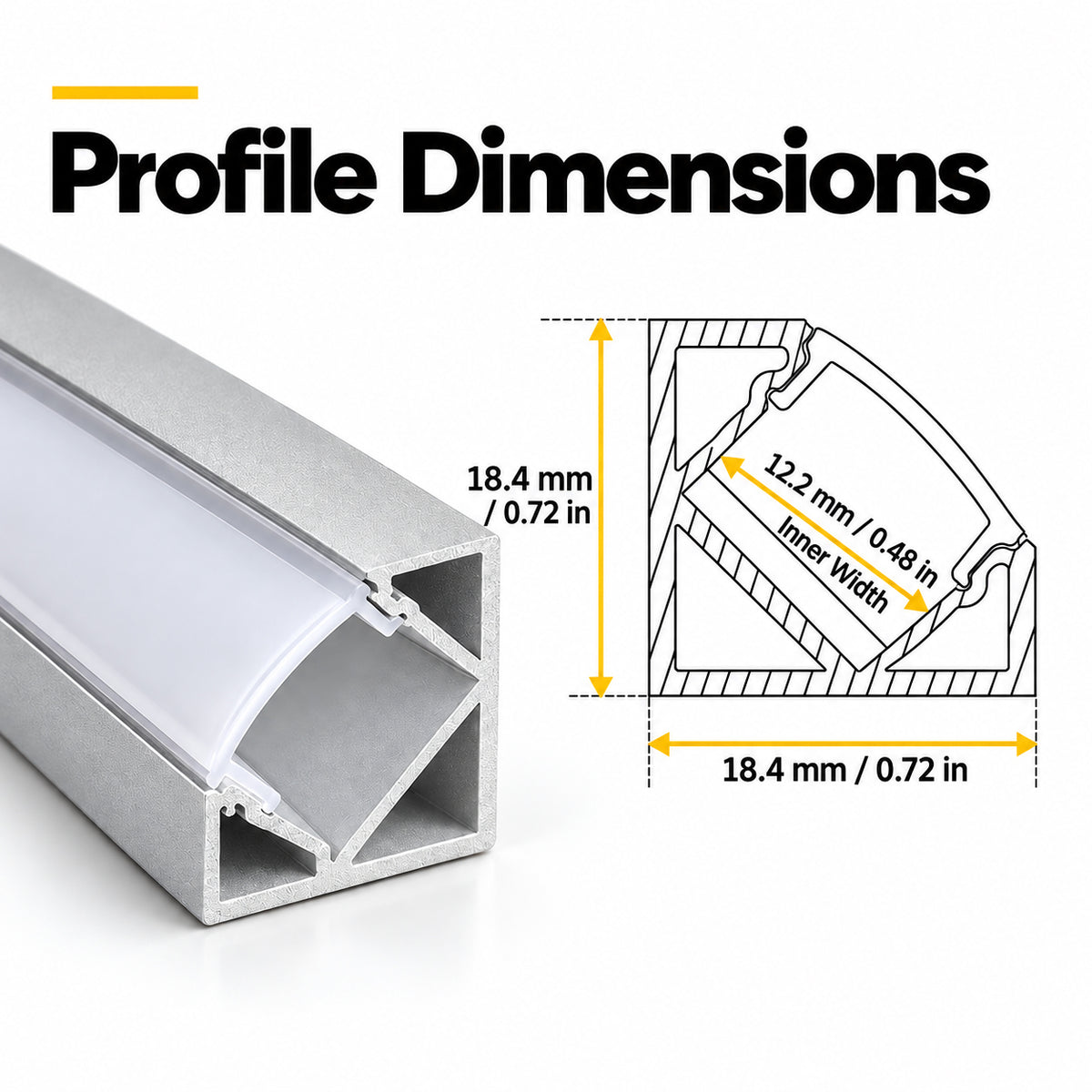

- Profile Size: 18 × 18mm
- Inner Width: Approx. 12mm
- Recommended LED Strip Width: Up to approximately 12mm
- Mounting Style: Corner / angled installation
- Available Lengths: 1 Meter / 2 Meters / 3 Meters
- Cover Options: Clear / Milky White
- Pack Options: 5 PCS / 10 PCS / 25 PCS / 50 PCS
Compatibility Note: Please measure your LED strip before ordering. The V03 channel has an inner width of approximately 12mm and is intended for compatible LED strips up to approximately 12mm wide.
Applications
The V03 is designed for corner-mounted LED strip installations where an angled lighting direction and a clean finished appearance are preferred.

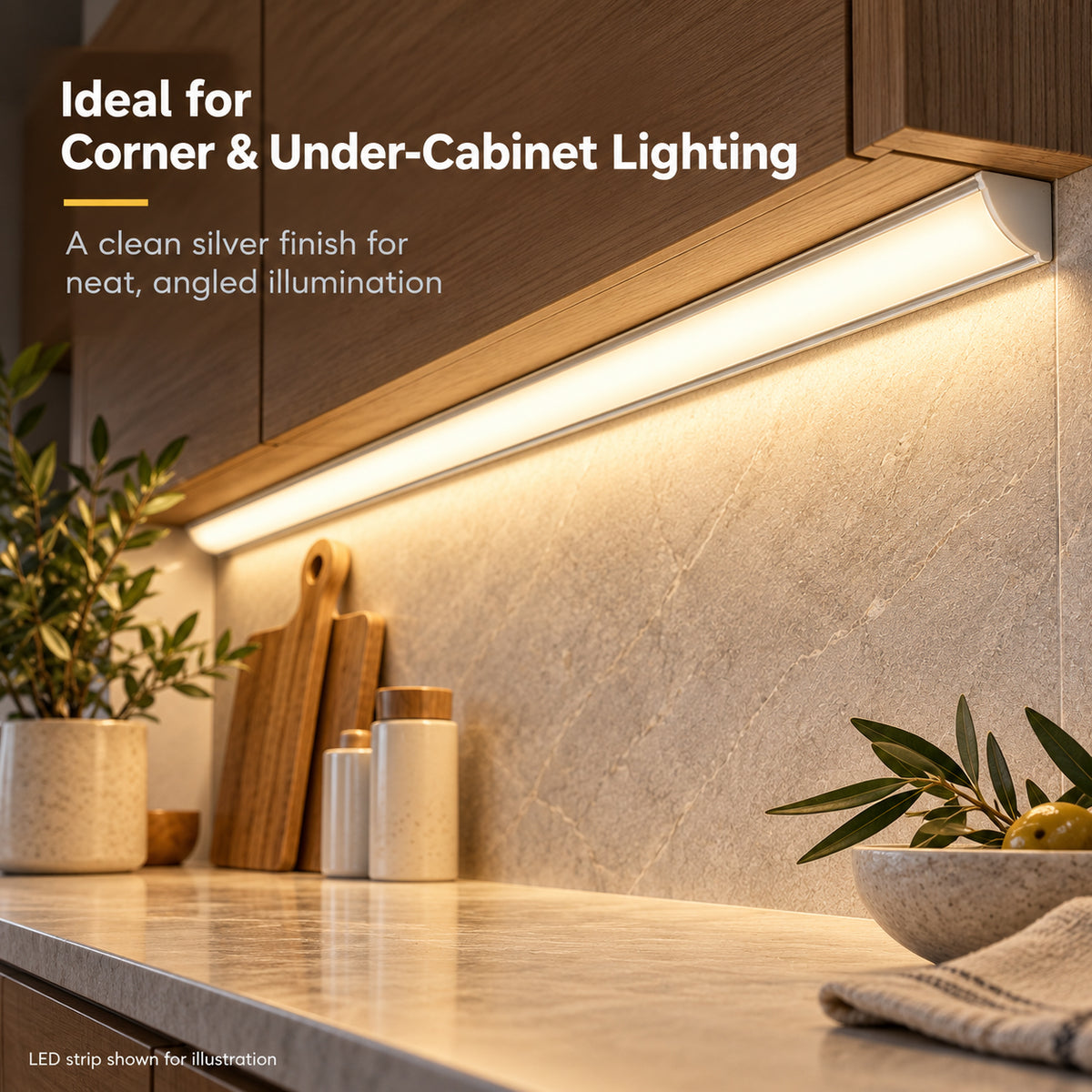

- Under-cabinet corner lighting
- Kitchen cabinet lighting
- Wall and ceiling corners
- Shelf and display lighting
- Furniture corner lighting
- Closet and wardrobe lighting
- Retail display fixtures
- Showcases and display cabinets
- Architectural corner details
- DIY angled LED lighting projects
Package Included
5 × 1M Pack
- 5 × 1-meter Silver V03 Aluminum Channels
- 5 × 1-meter Covers — Clear or Milky White according to selected option
- 10 × End Caps — 5 with wire hole + 5 closed
- 10 × Mounting Clips
- 10 × Screws
- 10 × Expansion Plugs
10 × 1M Pack
- 10 × 1-meter Silver V03 Aluminum Channels
- 10 × 1-meter Covers — Clear or Milky White according to selected option
- 20 × End Caps — 10 with wire hole + 10 closed
- 20 × Mounting Clips
- 20 × Screws
- 20 × Expansion Plugs
25 × 1M Pack
- 25 × 1-meter Silver V03 Aluminum Channels
- 25 × 1-meter Covers — Clear or Milky White according to selected option
- 50 × End Caps — 25 with wire hole + 25 closed
- 50 × Mounting Clips
- 50 × Screws
- 50 × Expansion Plugs
50 × 1M Pack
- 50 × 1-meter Silver V03 Aluminum Channels
- 50 × 1-meter Covers — Clear or Milky White according to selected option
- 100 × End Caps — 50 with wire hole + 50 closed
- 100 × Mounting Clips
- 100 × Screws
- 100 × Expansion Plugs
5 × 2M Pack
- 5 × 2-meter Silver V03 Aluminum Channels
- 5 × 2-meter Covers — Clear or Milky White according to selected option
- 10 × End Caps — 5 with wire hole + 5 closed
- 20 × Mounting Clips
- 20 × Screws
- 20 × Expansion Plugs
10 × 2M Pack
- 10 × 2-meter Silver V03 Aluminum Channels
- 10 × 2-meter Covers — Clear or Milky White according to selected option
- 20 × End Caps — 10 with wire hole + 10 closed
- 40 × Mounting Clips
- 40 × Screws
- 40 × Expansion Plugs
25 × 2M Pack
- 25 × 2-meter Silver V03 Aluminum Channels
- 25 × 2-meter Covers — Clear or Milky White according to selected option
- 50 × End Caps — 25 with wire hole + 25 closed
- 100 × Mounting Clips
- 100 × Screws
- 100 × Expansion Plugs
50 × 2M Pack
- 50 × 2-meter Silver V03 Aluminum Channels
- 50 × 2-meter Covers — Clear or Milky White according to selected option
- 100 × End Caps — 50 with wire hole + 50 closed
- 200 × Mounting Clips
- 200 × Screws
- 200 × Expansion Plugs
5 × 3M Pack
- 5 × 3-meter Silver V03 Aluminum Channels
- 5 × 3-meter Covers — Clear or Milky White according to selected option
- 10 × End Caps — 5 with wire hole + 5 closed
- 30 × Mounting Clips
- 30 × Screws
- 30 × Expansion Plugs
10 × 3M Pack
- 10 × 3-meter Silver V03 Aluminum Channels
- 10 × 3-meter Covers — Clear or Milky White according to selected option
- 20 × End Caps — 10 with wire hole + 10 closed
- 60 × Mounting Clips
- 60 × Screws
- 60 × Expansion Plugs
25 × 3M Pack
- 25 × 3-meter Silver V03 Aluminum Channels
- 25 × 3-meter Covers — Clear or Milky White according to selected option
- 50 × End Caps — 25 with wire hole + 25 closed
- 150 × Mounting Clips
- 150 × Screws
- 150 × Expansion Plugs
50 × 3M Pack
- 50 × 3-meter Silver V03 Aluminum Channels
- 50 × 3-meter Covers — Clear or Milky White according to selected option
- 100 × End Caps — 50 with wire hole + 50 closed
- 300 × Mounting Clips
- 300 × Screws
- 300 × Expansion Plugs
Package Note: Each aluminum channel includes one pair of end caps: one end cap with a wire opening and one closed end cap. Each meter of channel is supplied with 2 mounting clips, 2 screws, and 2 expansion plugs. Cover type depends on the selected Clear or Milky White option.
Order & Logistics
Lead Time
Ships directly from our headquarters warehouse. Handling time is usually 3–7 business days before dispatch.
Delivery Information
Shipping fees are not included in the product price and will be charged separately based on the actual freight cost.
- Standard Delivery: Approximately 9–18 days after dispatch.
- Express Delivery: Approximately 3–7 days after dispatch.
- Warehouse: Ships directly from our headquarters warehouse.
- Shipping Terms: DDP is available for supported destinations and includes applicable duties, customs clearance, and door-to-door delivery.
If DDP service is unavailable for the destination country or region, we will contact the buyer regarding the available shipping arrangement before proceeding.

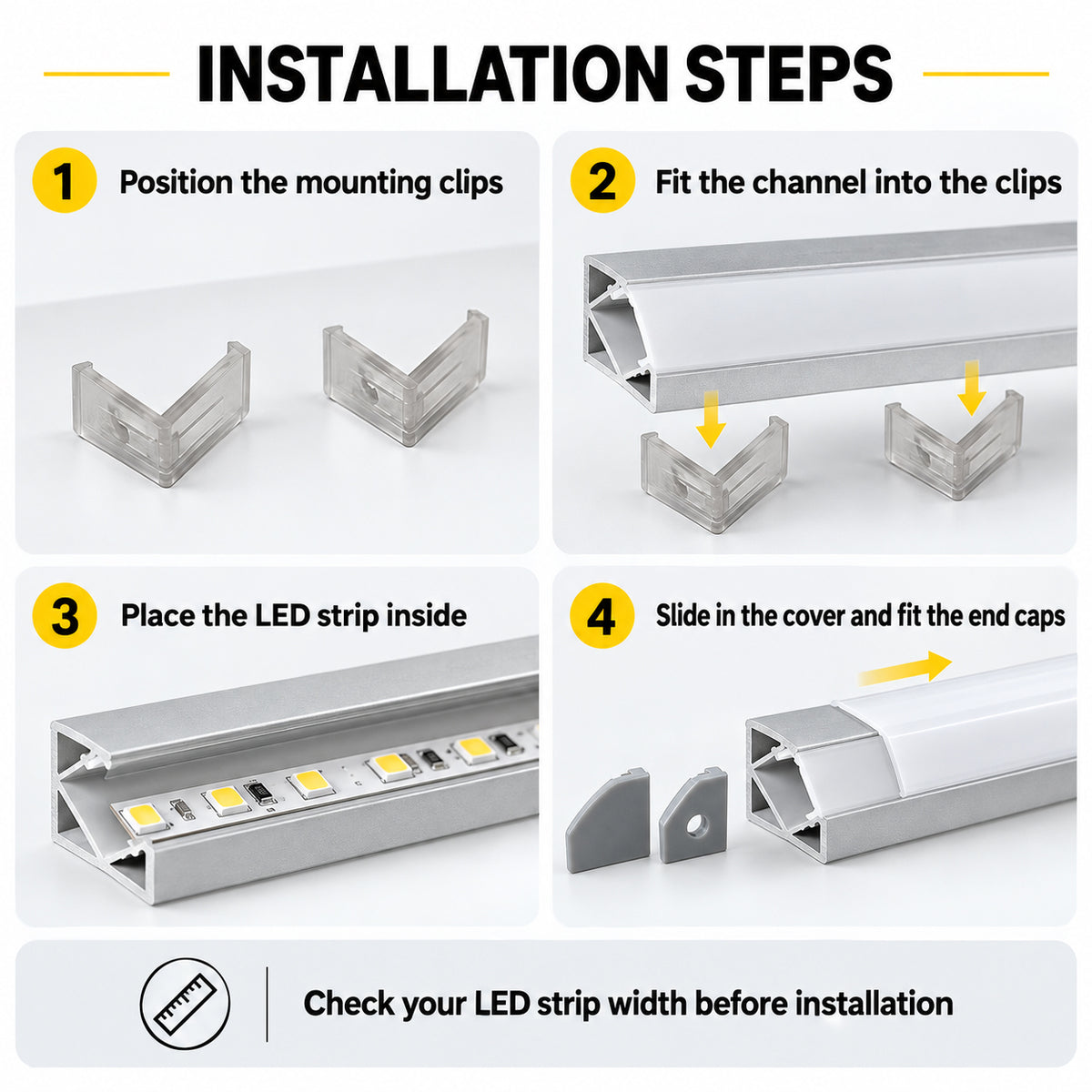

Installation
1. Measure and Plan
Confirm the required channel length, corner position, cable route, and LED strip width before installation. The LED strip should be no wider than approximately 12mm.
2. Mark the Corner Mounting Position
Position the V03 profile along the intended cabinet, wall, shelf, or furniture corner and mark the mounting clip locations.
3. Secure the Mounting Clips
Install the mounting clips using the supplied screws and expansion plugs where appropriate for the mounting surface. Approximately two mounting clips, screws, and expansion plugs are supplied for each meter of channel.
4. Install the Aluminum Channel
Press the Silver V03 aluminum profile securely into the mounting clips and confirm that the channel is aligned correctly along the corner.
5. Install the LED Strip
Clean the inside surface of the channel before applying the LED strip. Position the strip evenly inside the V03 profile to maintain a consistent angled lighting direction.
6. Install the Cover and End Caps
Fit the selected clear or milky white cover onto the channel. Install the closed end cap on one end and use the end cap with the wire opening where the LED strip cable exits the profile.
Installation Note: Confirm the final channel alignment, LED strip position, lighting direction, cable routing, and mounting surface before completing the installation.
