Silver U01 9x23mm U-Shape LED Aluminum Channel, 12mm Inner Width, with Cover, End Caps & Mounting Clips
Key Features
- Low-Profile U-Shape Design: The U01 aluminum channel features a compact 9mm profile height and 23mm top width, providing a clean and streamlined finish for LED strip installations.
- Fits LED Strips Up to Approx. 12mm Wide: With an inner width of approximately 12.15mm, the channel accommodates many commonly used LED strip lights up to approximately 12mm wide.
- Multiple Length and Pack Options: Available in 1-meter, 2-meter, and 3-meter lengths with 5, 10, 25, or 50 channels per pack for projects of different sizes.

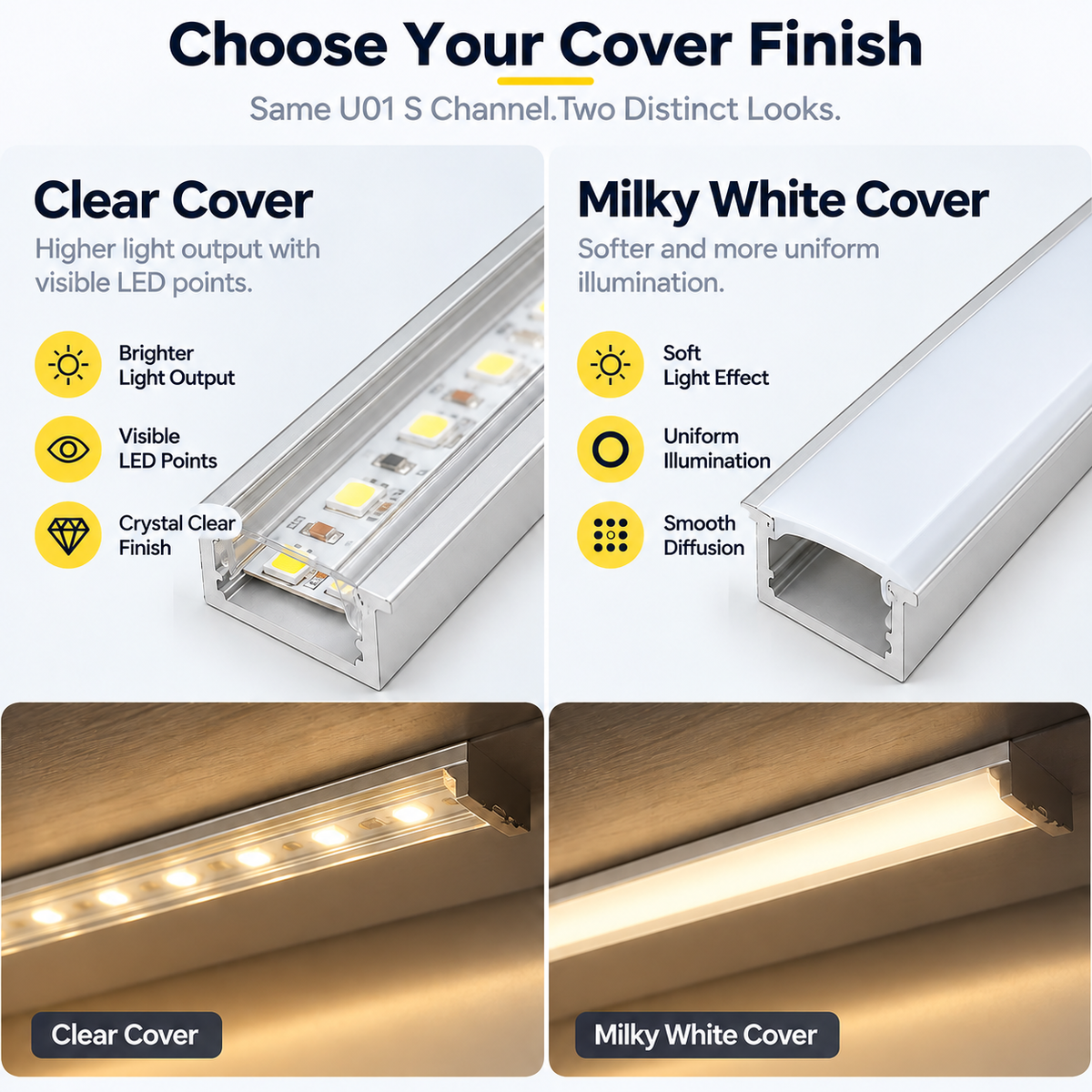

- Clear or Milky White Cover: Choose a clear cover for a more direct lighting appearance or a milky white cover for a softer, more diffused look.
- Complete Mounting Accessories: Each channel includes one pair of end caps, while mounting clips, screws, and expansion plugs are supplied according to channel length.
- Silver Finish: The silver aluminum finish blends naturally with dark cabinetry, shelving, furniture, architectural details, and modern interior designs.
Specifications
- Model: U01
- Product Type: U-Shape LED Aluminum Channel
- Finish: Silver
- Profile Size: 9 × 23mm
- Profile Height: 9mm / 0.35in
- Inner Width: 12.15mm / 0.48in
- Top Width: 23mm / 0.91in
- Back Width: 16.9mm / 0.67in
- Recommended LED Strip Width: Up to approximately 12mm
- Available Lengths: 1 Meter / 2 Meters / 3 Meters
- Cover Options: Clear / Milky White
- Pack Options: 5 PCS / 10 PCS / 25 PCS / 50 PCS
Compatibility Note: Please measure your LED strip before ordering. The U01 channel has an inner width of approximately 12.15mm and is intended for LED strips up to approximately 12mm wide.
Applications
Suitable for residential, furniture, retail, display, and architectural LED strip installations where a clean and organized linear lighting finish is required.

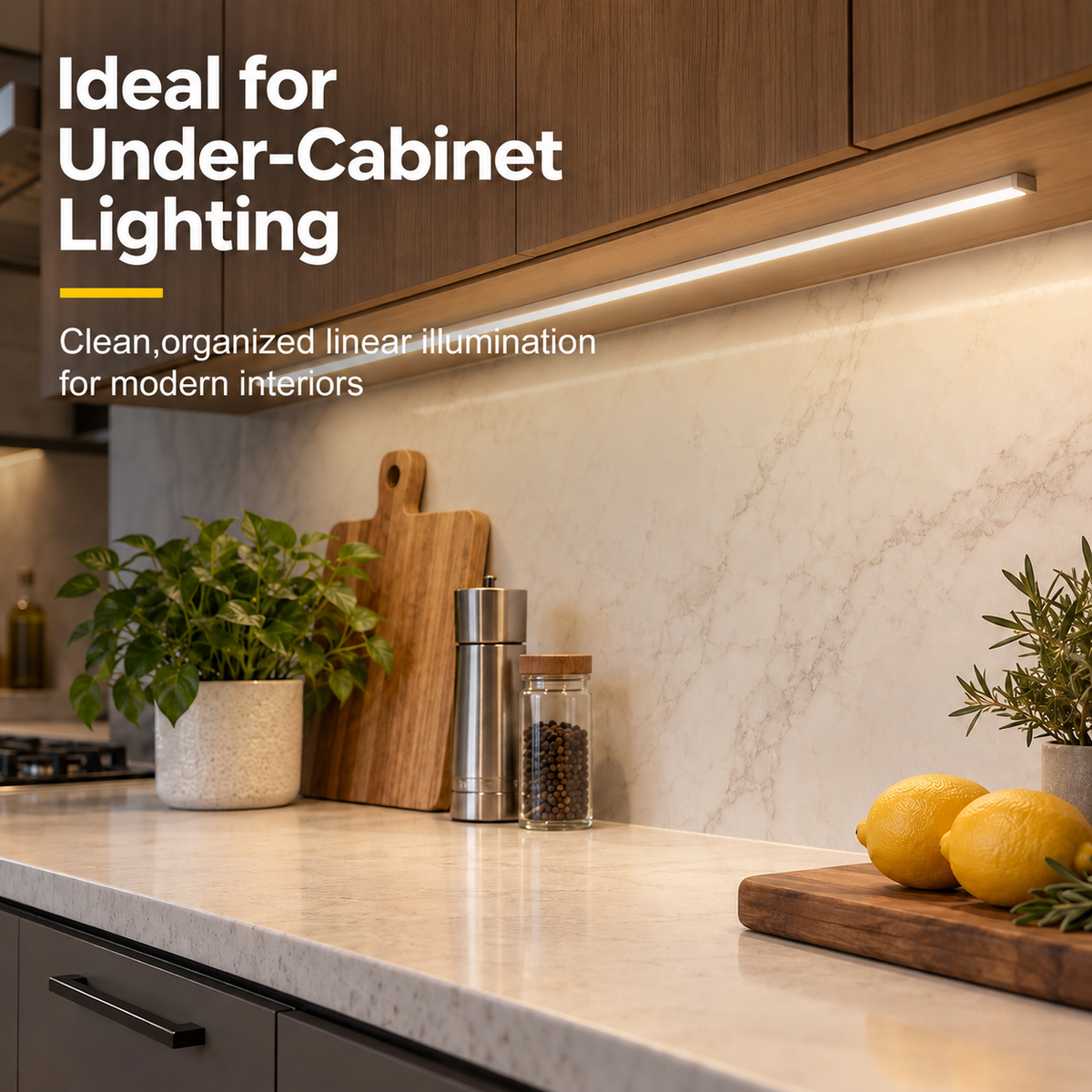

- Under-cabinet lighting
- Kitchen cabinet and countertop lighting
- Shelf and display lighting
- Furniture accent lighting
- Wall and ceiling accent lighting
- Steps and stair lighting
- Niches and recessed lighting details
- Closet and wardrobe lighting
- Display cases and retail fixtures
- DIY linear LED lighting projects

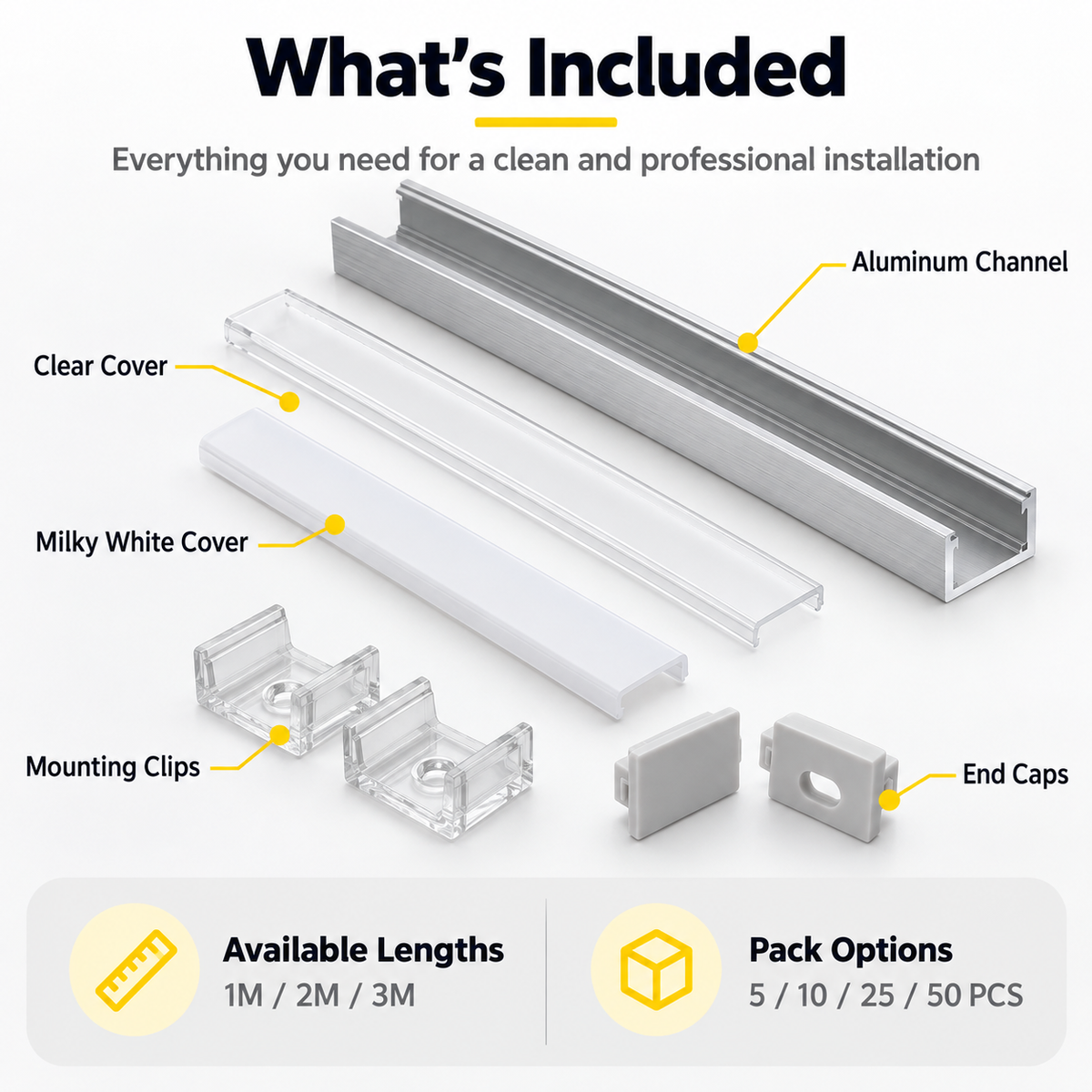

Package Included
5 × 1M Pack
- 5 × 1-meter Silver U01 Aluminum Channels
- 5 × 1-meter Covers — Clear or Milky White according to selected option
- 10 × End Caps — 5 with wire hole + 5 closed
- 10 × Mounting Clips
- 10 × Screws
- 10 × Expansion Plugs
10 × 1M Pack
- 10 × 1-meter Silver U01 Aluminum Channels
- 10 × 1-meter Covers — Clear or Milky White according to selected option
- 20 × End Caps — 10 with wire hole + 10 closed
- 20 × Mounting Clips
- 20 × Screws
- 20 × Expansion Plugs
25 × 1M Pack
- 25 × 1-meter Silver U01 Aluminum Channels
- 25 × 1-meter Covers — Clear or Milky White according to selected option
- 50 × End Caps — 25 with wire hole + 25 closed
- 50 × Mounting Clips
- 50 × Screws
- 50 × Expansion Plugs
50 × 1M Pack
- 50 × 1-meter Silver U01 Aluminum Channels
- 50 × 1-meter Covers — Clear or Milky White according to selected option
- 100 × End Caps — 50 with wire hole + 50 closed
- 100 × Mounting Clips
- 100 × Screws
- 100 × Expansion Plugs
5 × 2M Pack
- 5 × 2-meter Silver U01 Aluminum Channels
- 5 × 2-meter Covers — Clear or Milky White according to selected option
- 10 × End Caps — 5 with wire hole + 5 closed
- 20 × Mounting Clips
- 20 × Screws
- 20 × Expansion Plugs
10 × 2M Pack
- 10 × 2-meter Silver U01 Aluminum Channels
- 10 × 2-meter Covers — Clear or Milky White according to selected option
- 20 × End Caps — 10 with wire hole + 10 closed
- 40 × Mounting Clips
- 40 × Screws
- 40 × Expansion Plugs
25 × 2M Pack
- 25 × 2-meter Silver U01 Aluminum Channels
- 25 × 2-meter Covers — Clear or Milky White according to selected option
- 50 × End Caps — 25 with wire hole + 25 closed
- 100 × Mounting Clips
- 100 × Screws
- 100 × Expansion Plugs
50 × 2M Pack
- 50 × 2-meter Silver U01 Aluminum Channels
- 50 × 2-meter Covers — Clear or Milky White according to selected option
- 100 × End Caps — 50 with wire hole + 50 closed
- 200 × Mounting Clips
- 200 × Screws
- 200 × Expansion Plugs
5 × 3M Pack
- 5 × 3-meter Silver U01 Aluminum Channels
- 5 × 3-meter Covers — Clear or Milky White according to selected option
- 10 × End Caps — 5 with wire hole + 5 closed
- 30 × Mounting Clips
- 30 × Screws
- 30 × Expansion Plugs
10 × 3M Pack
- 10 × 3-meter Silver U01 Aluminum Channels
- 10 × 3-meter Covers — Clear or Milky White according to selected option
- 20 × End Caps — 10 with wire hole + 10 closed
- 60 × Mounting Clips
- 60 × Screws
- 60 × Expansion Plugs
25 × 3M Pack
- 25 × 3-meter Silver U01 Aluminum Channels
- 25 × 3-meter Covers — Clear or Milky White according to selected option
- 50 × End Caps — 25 with wire hole + 25 closed
- 150 × Mounting Clips
- 150 × Screws
- 150 × Expansion Plugs
50 × 3M Pack
- 50 × 3-meter Silver U01 Aluminum Channels
- 50 × 3-meter Covers — Clear or Milky White according to selected option
- 100 × End Caps — 50 with wire hole + 50 closed
- 300 × Mounting Clips
- 300 × Screws
- 300 × Expansion Plugs
Package Note: Each aluminum channel includes one pair of end caps: one end cap with a wire opening and one closed end cap. Each meter of channel is supplied with 2 mounting clips, 2 screws, and 2 expansion plugs. Cover type depends on the selected Clear or Milky White option.
Order & Logistics
Lead Time
Ships directly from our headquarters warehouse. Handling time is usually 3–7 business days before dispatch.
Delivery Information
Shipping fees are not included in the product price and will be charged separately based on the actual freight cost.
- Standard Delivery: Approximately 9–18 days after dispatch.
- Express Delivery: Approximately 3–7 days after dispatch.
- Warehouse: Ships directly from our headquarters warehouse.
- Shipping Terms: DDP is available for supported destinations and includes applicable duties, customs clearance, and door-to-door delivery.
If DDP service is unavailable for the destination country or region, we will contact the buyer regarding the available shipping arrangement before proceeding.

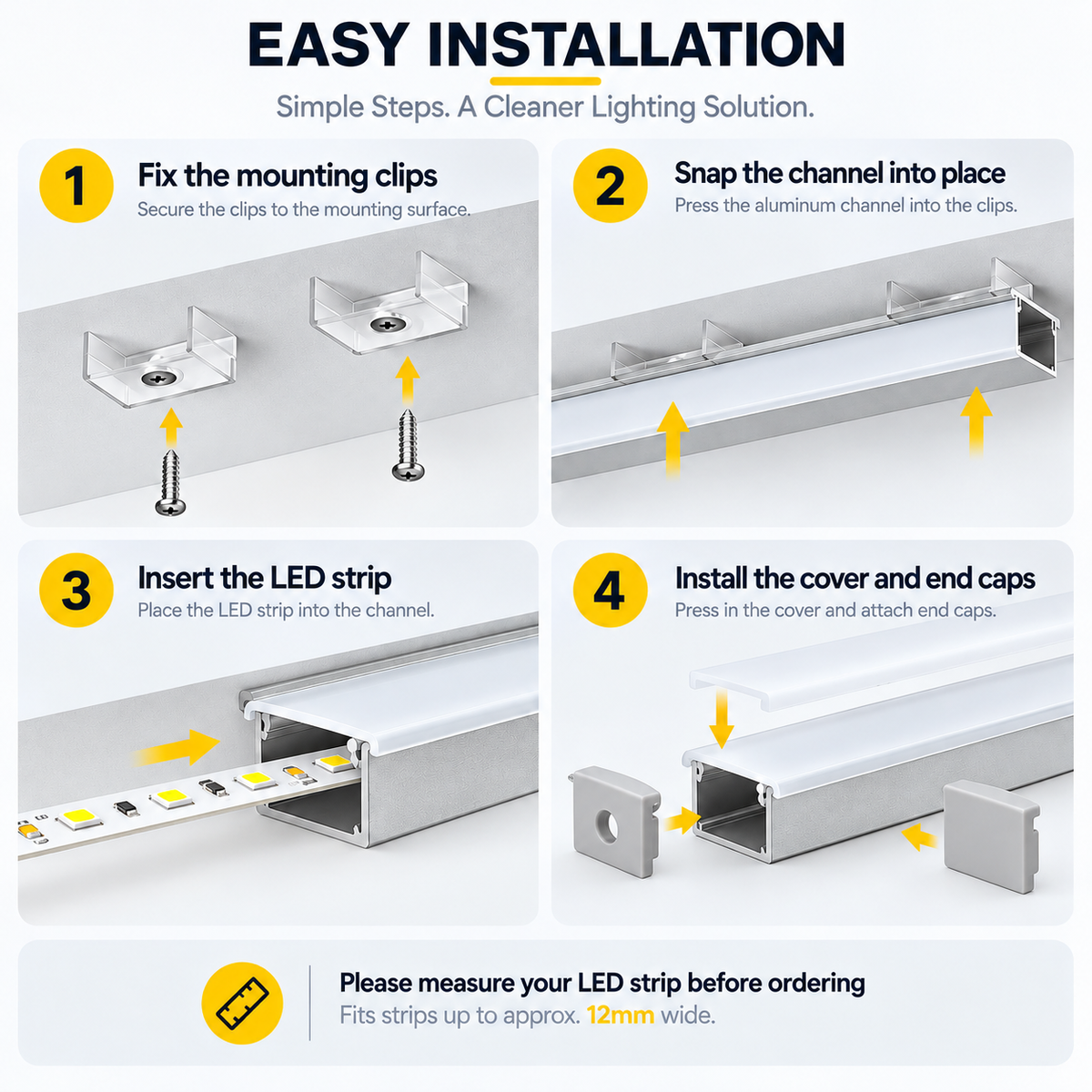

Installation
1. Measure and Plan
Confirm the required channel length, mounting position, and LED strip width before installation. The LED strip should be no wider than approximately 12mm.
2. Position the Mounting Clips
Mark the mounting positions along the installation surface. The package includes approximately two mounting clips, screws, and expansion plugs for each meter of channel.
3. Secure the Mounting Hardware
Install the mounting clips using the supplied screws and expansion plugs where appropriate for the mounting surface.
4. Install the Aluminum Channel
Press the U01 aluminum profile securely into the mounting clips and confirm that the channel is firmly positioned.
5. Install the LED Strip
Clean the inside surface of the aluminum channel before applying the LED strip. Position the strip evenly along the center of the profile.
6. Install the Cover and End Caps
Fit the selected clear or milky white cover onto the channel. Install the closed end cap on one end and use the end cap with the wire opening where the LED strip cable exits the profile.
Installation Note: Confirm the final channel length, LED strip position, cable routing, and mounting surface before completing the installation.
