COB LED Strip Light 12V/24V 320/480/512LEDs/M, 8mm Flexible Dot-Free LED Tape, CRI80+ High Brightness Non-Waterproof, 3000K/4000K/6500K & RGB Colors for Cabinet Kitchen Lighting, 5M/10M Pack
COB LED Strip Light 12V/24V 320/480/512LEDs/M, 8mm Flexible Dot-Free LED Tape, CRI80+ High Brightness Non-Waterproof, 3000K/4000K/6500K & RGB Colors for Cabinet Kitchen Lighting, 5M/10M Pack
Package Included
| Version | Package Included |
| 1 Roll × 5 m (16.5 ft total) (Strip Only) | 1 Roll × 5 m (16.5 ft) LED Strip Light Only, Do not include Power Supply and Controller |
| 2 Rolls × 5 m (33 ft total) (Strip Only) | 2 Rolls × 5 m (33 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
About this item
- High CRI80+ Lighting: Delivers natural, true-to-life colors for cabinets, shelves, and indoor accent lighting.
- Multiple LED Density Options: 320, 480, or 512 LEDs/m for customizable brightness (8W–12W/m).

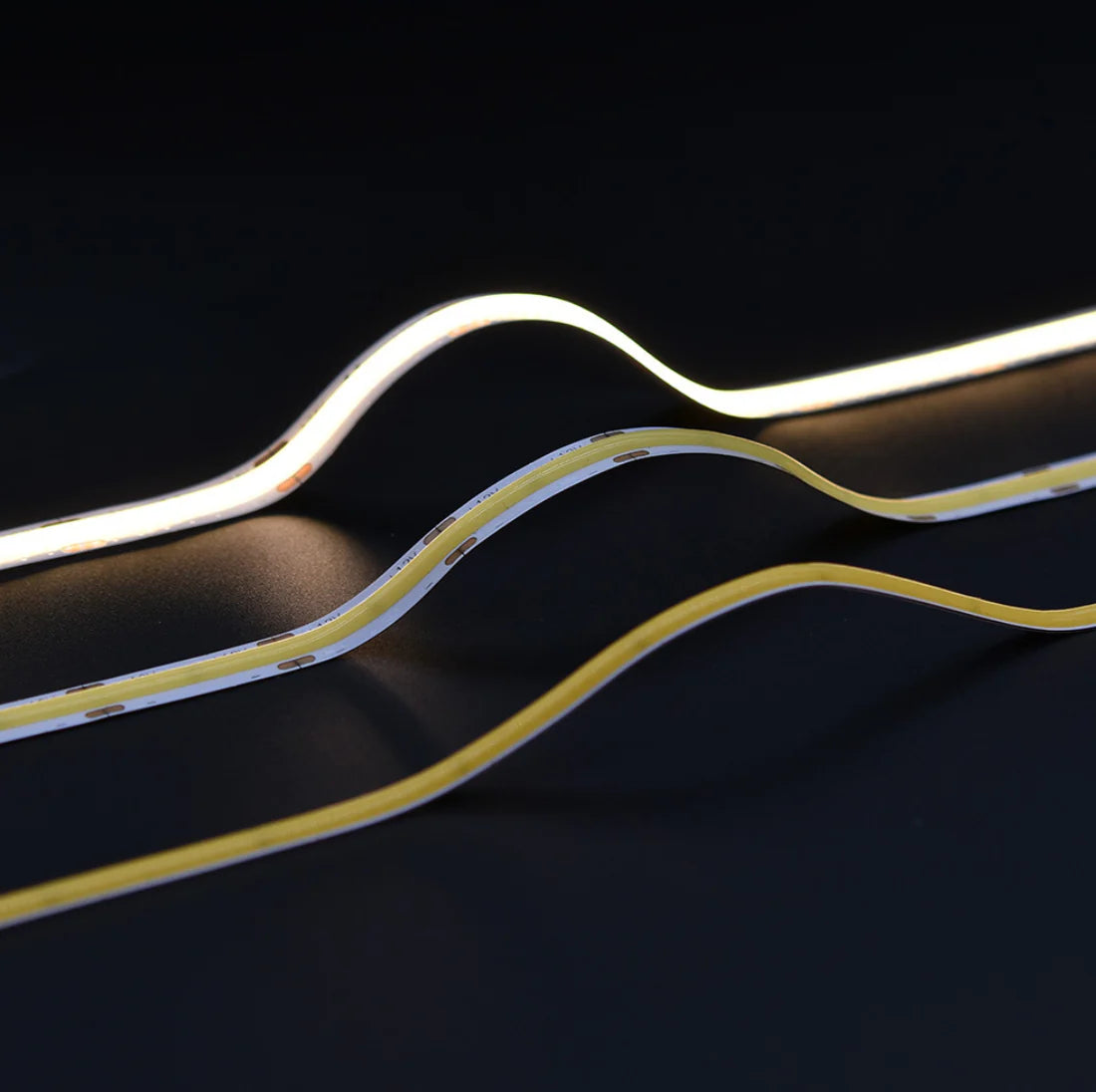

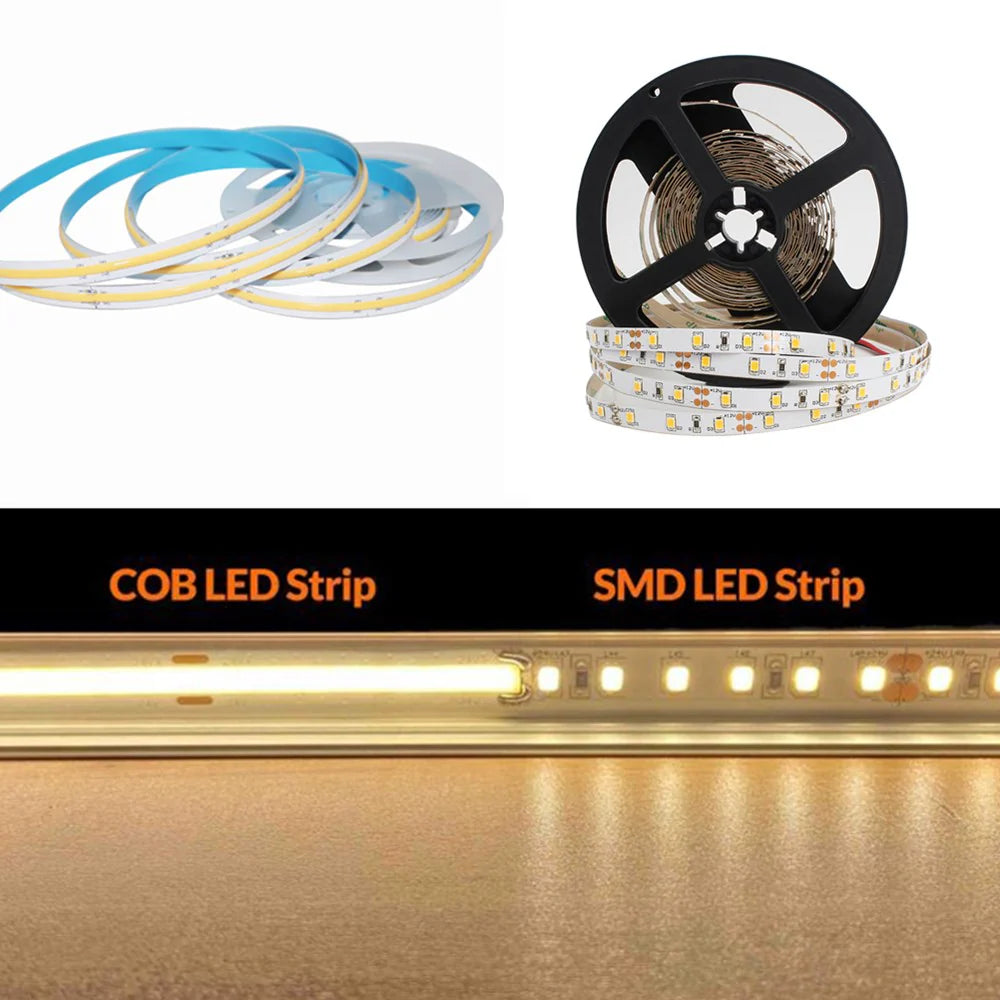

- Flexible & Dot-Free Glow: COB technology ensures smooth linear illumination without visible LED dots.
- Dual Voltage Support: Compatible with 12V DC and 24V DC systems for versatile installations.

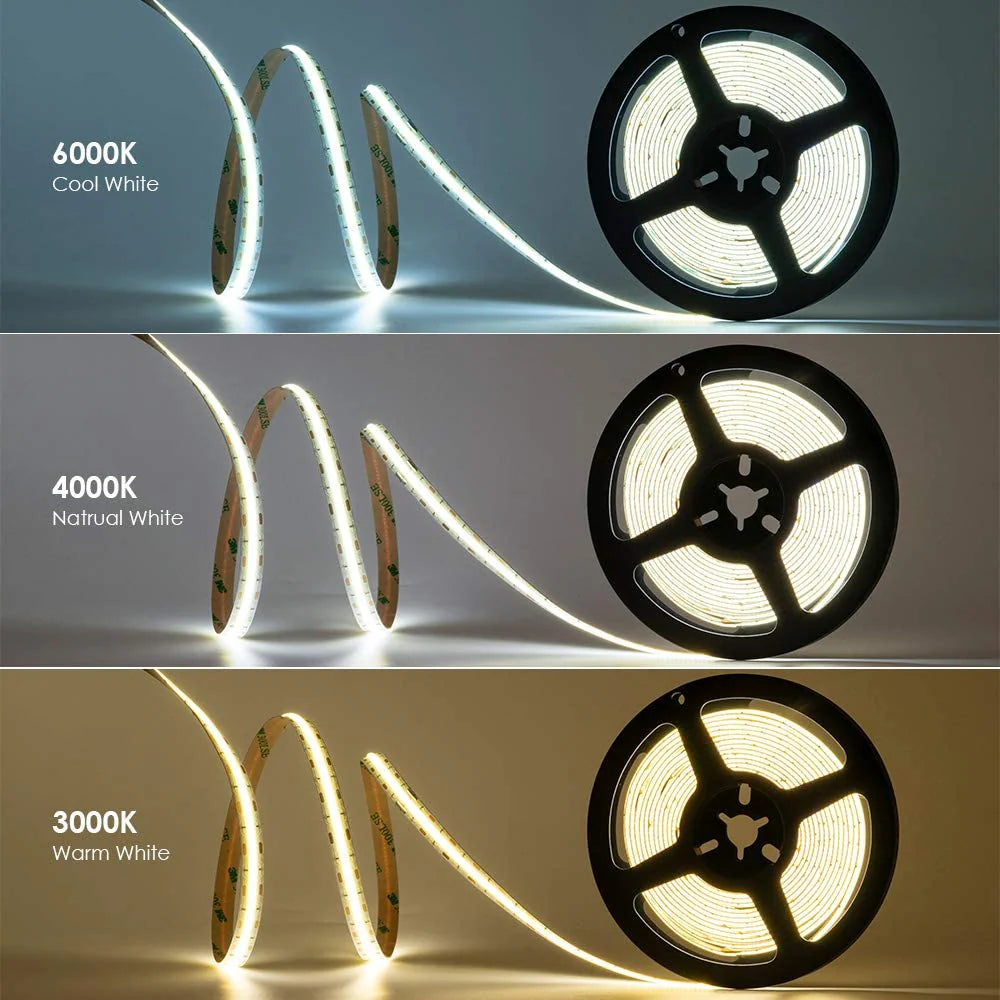

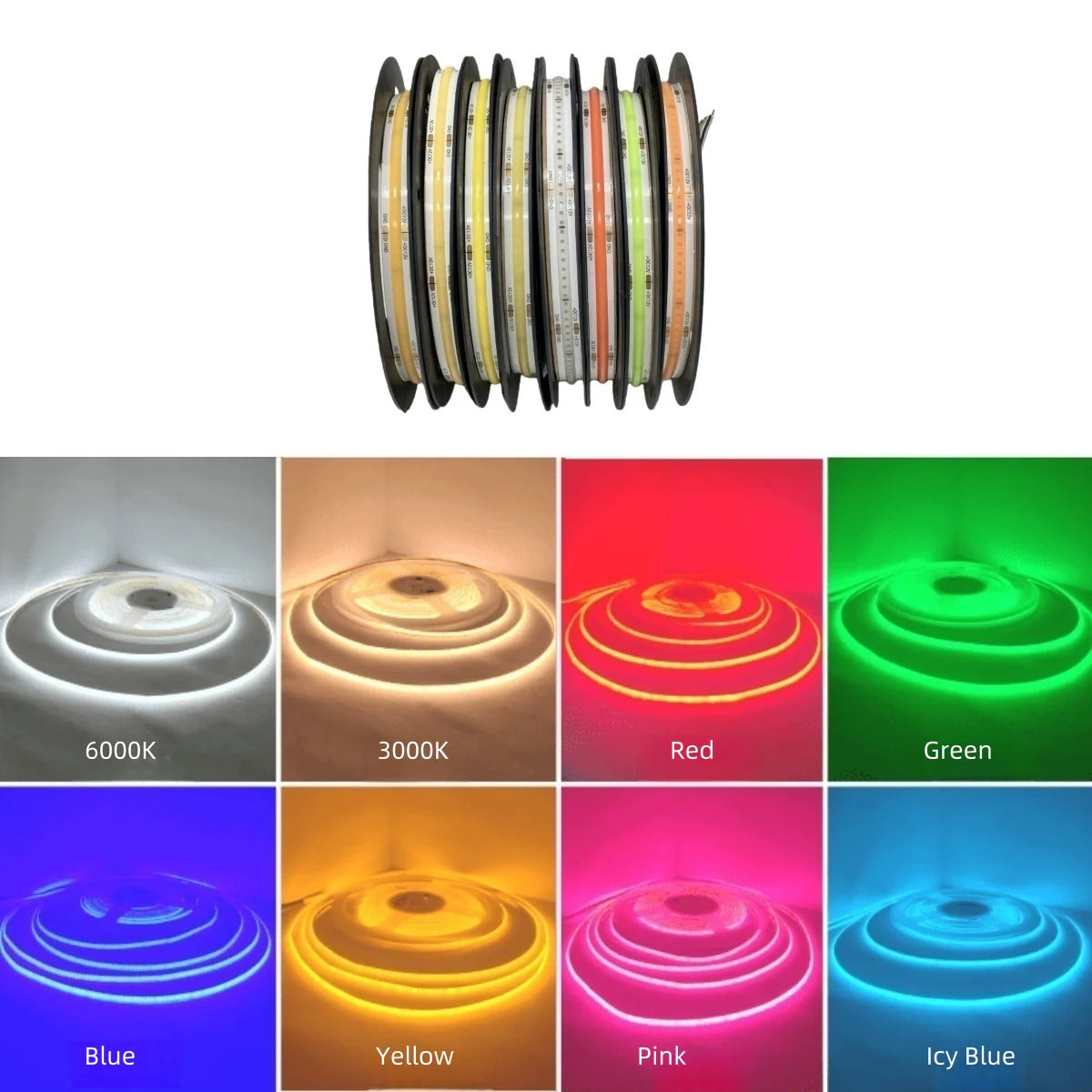

- Wide Color Selection: Warm White (3000K), Neutral White (4000K), Cool White (6500K), plus Red, Blue, Green, Pink, Yellow for creative lighting effects.

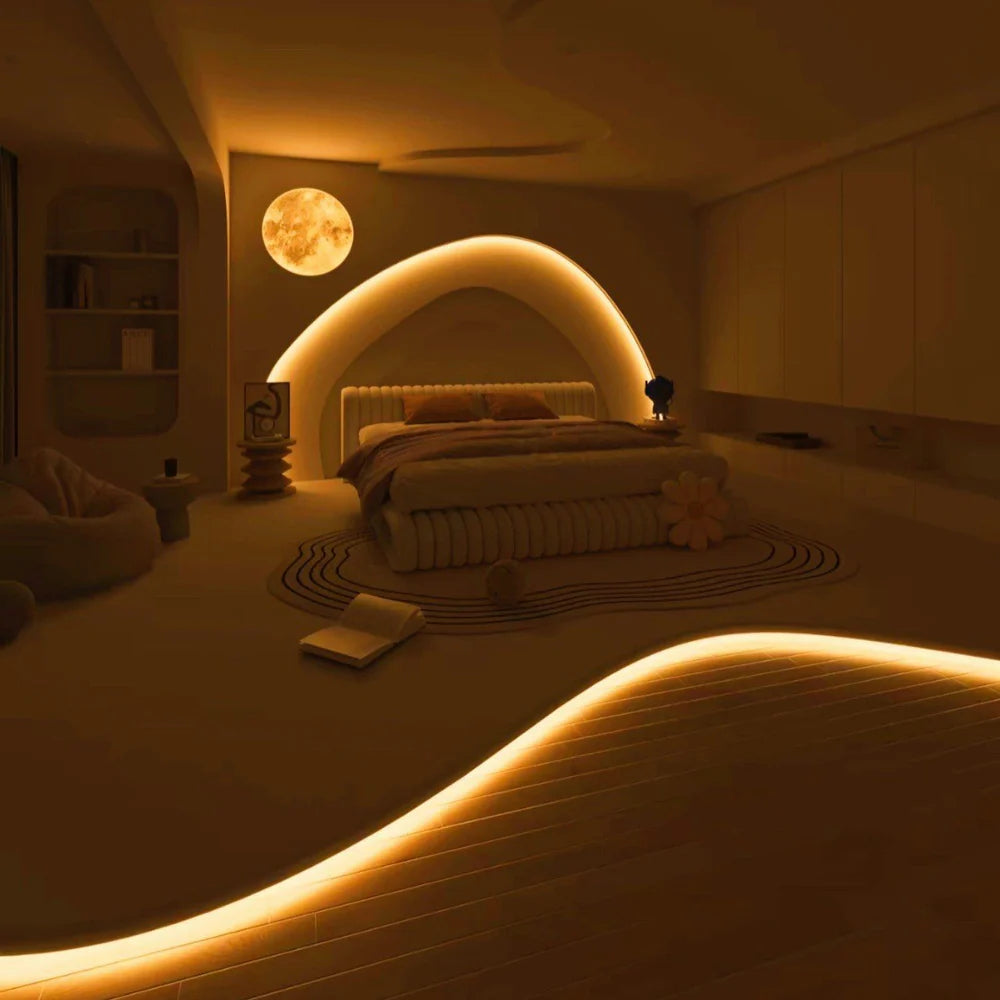

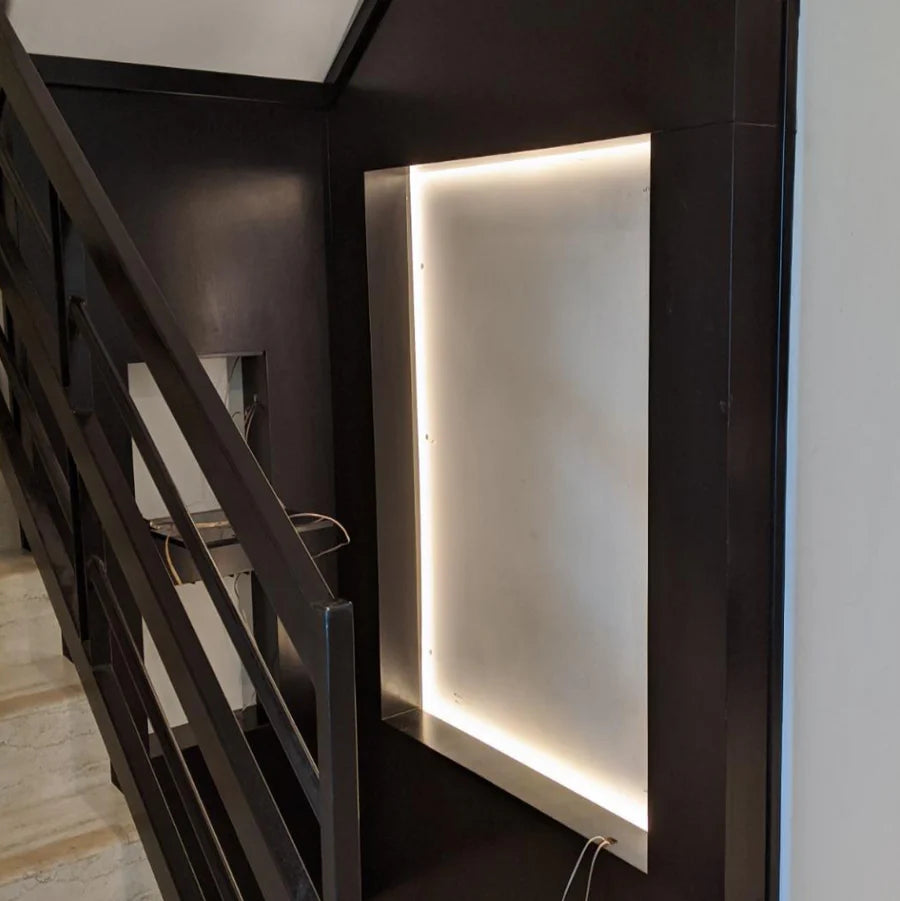

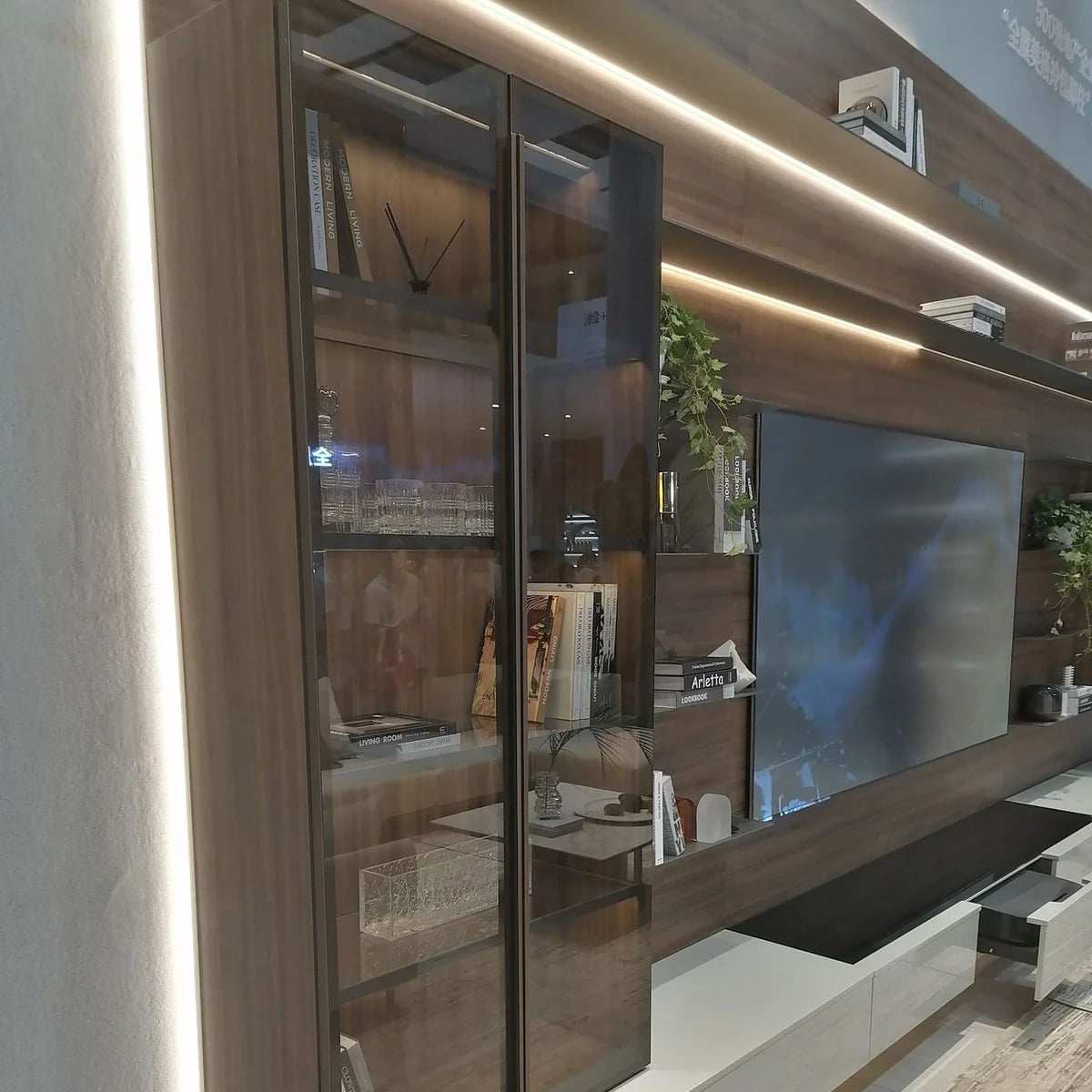

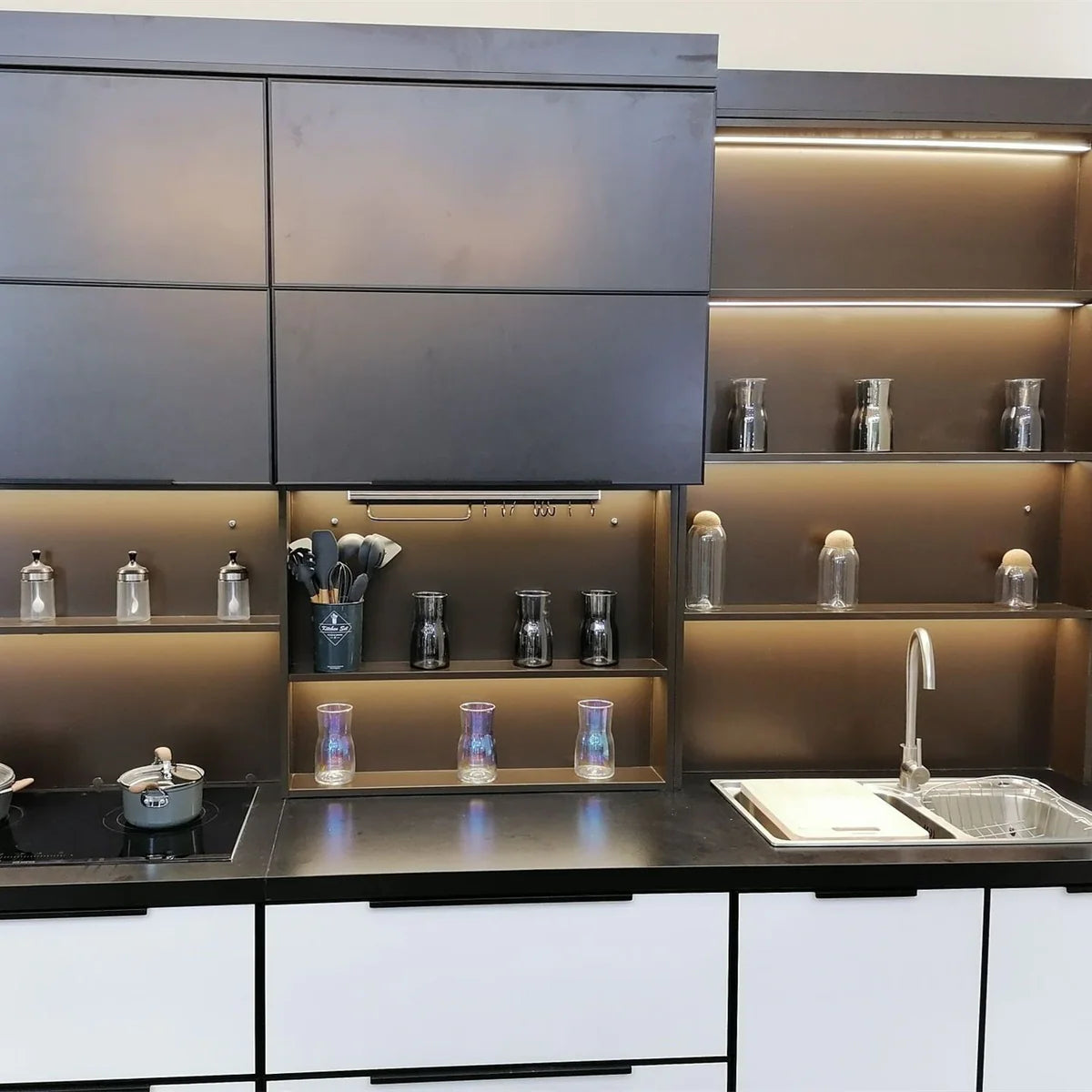

- Indoor Applications: Non-waterproof (IP00) ideal for kitchens, cabinets, furniture, signage, and architectural accents.

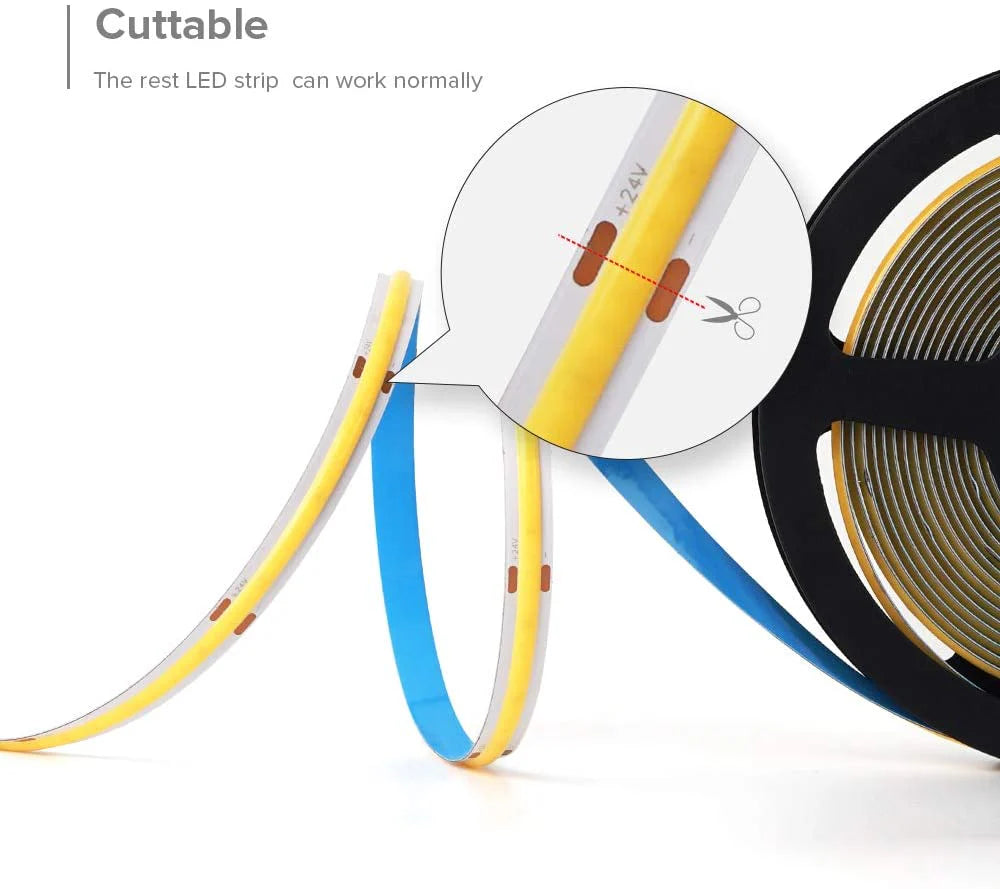

- Custom Length & Easy Installation: Available in 5M rolls or combined 10M packs. Can be cut every 50mm for precise fitting.
Order & Logistics
- Lead Time: Ships directly from headquarters. Handling time 3–5 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping:
This series enjoys our Free Shipping Policy for orders over $399.
- HQ Fulfillment (when local stock is unavailable): Standard 9–18 days | Express 5–9 days.
Key Specifications

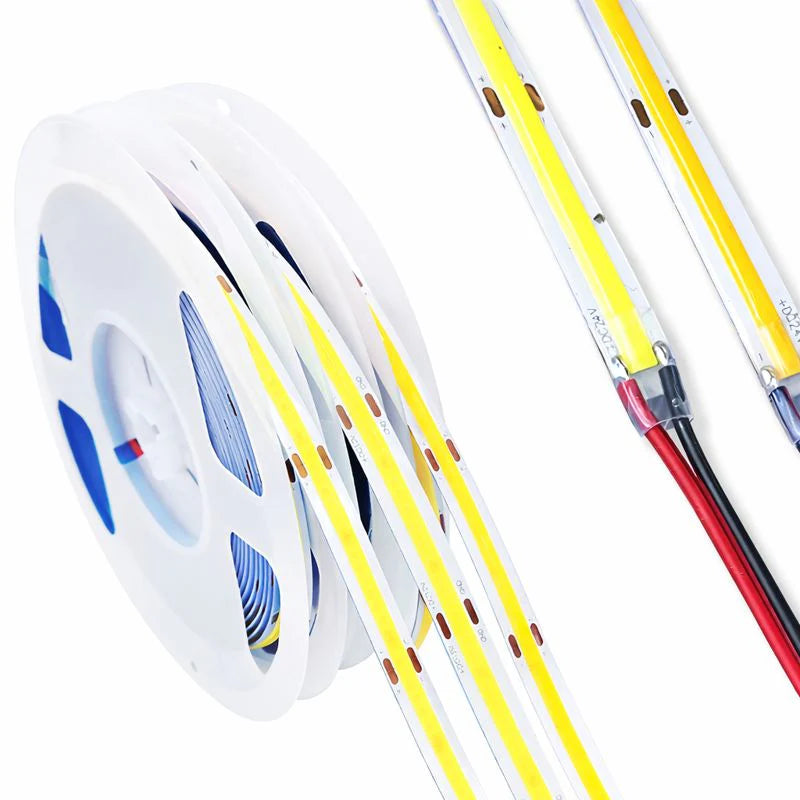

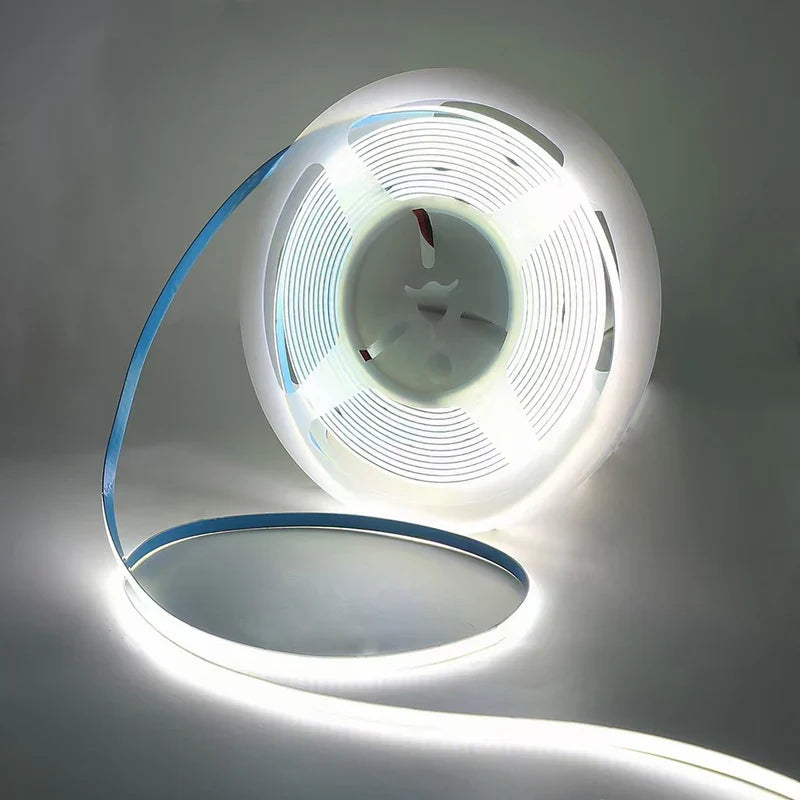

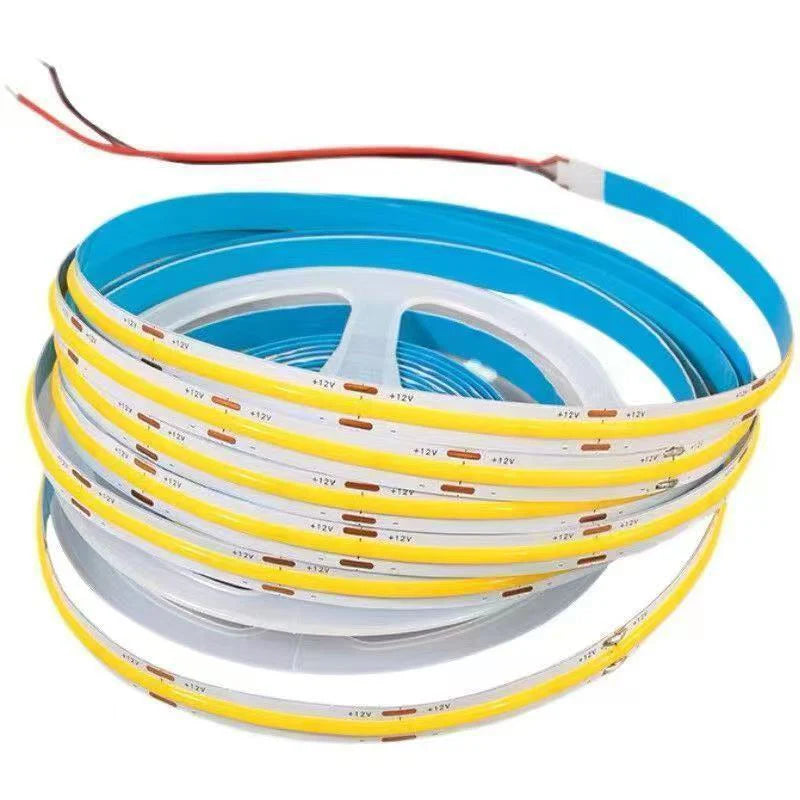

- Product Name: COB Flexible LED Strip Light
- LED Type: COB (Chip-on-Board)
- Length per Roll: 5M (16.5FT)
- LED Density Options: 12V-320 / 24V-320 / 12V-480 / 24V-480 / 12V-512 / 24V-512 LEDs/m
- Power Consumption: 8W/m, 10W/m, 12W/m depending on LED density
- Input Voltage: 12V DC / 24V DC

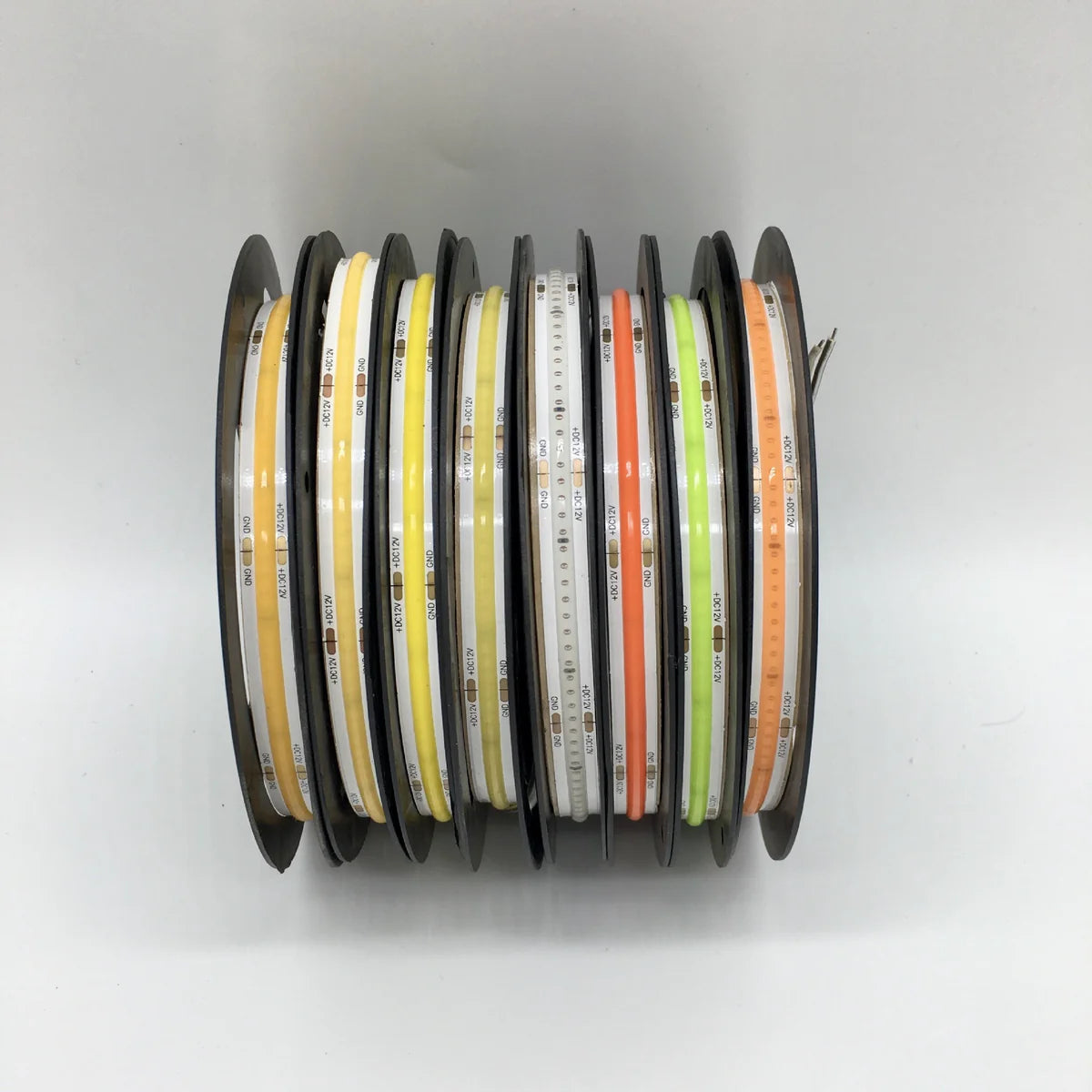

- Color Options: 3000K / 4000K / 6500K / Red / Blue / Green / Pink / Yellow
- CRI: ≥80
- PCB Width: 8mm
- Cut Section: 50mm
- Dimmable: Yes
- Waterproof Rating: Non-Waterproof, IP00
- Beam Angle: 180°
- Lumen per LED: 26 lm
- Power Factor: 0.75
- Lifetime: 50,000 hours
- Size per Roll: 5000 × 8 mm
- Net Weight per Roll: 160 g
- Control Type: DC powered
- Certification: CE
- Origin: China
- Custom Service: Custom lengths available
Technical Specifications
| Specification | Details |
|---|---|
| LED Density | 320 / 480 / 512 LEDs/m |
| Voltage | 12V DC / 24V DC |
| Power Consumption | 8–12W/m depending on LED density |
| Color Options | 3000K / 4000K / 6500K / Red / Blue / Green / Pink / Yellow |
| CRI | ≥80 |
| PCB Width | 8mm |
| Cut Section | 50mm |
| Dimmable | Yes |
| Waterproof Rating | Non-Waterproof, IP00 |
| Beam Angle | 180° |
| Lumen per LED | 26 lm |
| Power Factor | 0.75 |
| Lifetime | 50,000 hours |
| Size per Roll | 5000 × 8 mm |
| Net Weight per Roll | 160 g |
| Control Type | DC powered |
| Certification | CE |
| Origin | China |
| Package Options | 16.5FT (5M × 1 Roll) / 33FT (5M × 2 Rolls) |
Usage Notes / Installation Tips
- Power Wiring Methods:
How to power/control the strip
When choosing the transformer, the wattage to choose depends on how many pieces light strips it power. We suggest using a higher wattage transformer than the strip’s rated power to avoid full load working. A higher power transformer will not harm the strip and improves safety.
Below please find the connection diagram for Single Color Light Strip for reference.
a. Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
b. Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. The strips the Dimmer and Amplifier loaded with cannot exceed their rated max value.
Applications
- General Information:
