Waterproof LED Power Supply Guide: Structure, Voltage and Application Selection

Waterproof LED power supplies are the core component in outdoor lighting systems, responsible for stable voltage conversion and safe operation under harsh environmental conditions. In real-world applications, these devices are often exposed to rain, humidity, dust, heat, and long-term continuous operation requirements, which makes structural design and sealing technology extremely important.

At LTW, waterproof LED drivers are engineered around two main structural systems: aluminum housing with fully potted encapsulation and plastic housing with potting protection. Both structures are designed to meet IP67 protection standards, but they serve different levels of lighting projects depending on power demand, installation environment, and thermal requirements.

Two Core Structural Systems of Waterproof LED Power Supply

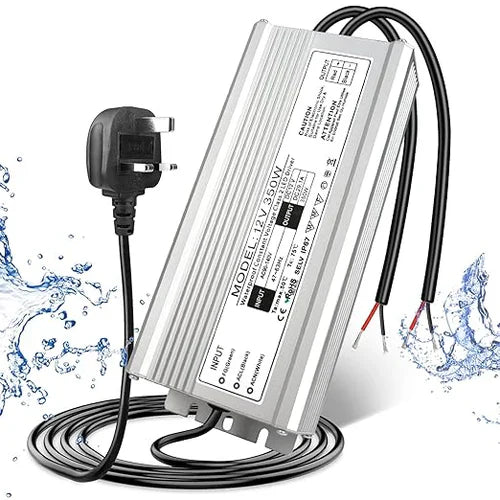

Aluminum Housing Potting Structure

Aluminum housing waterproof LED power supplies are designed for high-load and professional outdoor lighting applications. The aluminum shell provides excellent thermal conductivity, allowing internal heat to dissipate efficiently during long-term continuous operation. This improves both stability and service life, especially in high-power scenarios.

This structure is widely used in:

• Commercial architectural lighting systems
• Large-scale landscape illumination projects
• Outdoor façade and building contour lighting
• Long-distance LED strip installations
• Municipal and industrial lighting systems
• Signage and advertising lighting infrastructure

Because of its reinforced housing and thermal advantages, this structure is preferred in projects requiring 24/7 operation or high wattage output.

Typical power range: 30W to 500W
Output voltage options: 12V / 24V / 36V / 48V

Plastic Housing Potting Structure (LPV Series)

Plastic housing waterproof LED power supplies are compact, lightweight, and cost-effective solutions designed for residential and light commercial applications. Although the housing is plastic, the internal potting compound ensures full sealing and stable protection against moisture and dust.

This structure is commonly used in:

• Residential garden lighting systems
• Small courtyard landscape lighting
• Short-distance LED strip installations
• Decorative lighting projects
• Low-power signage or accent lighting

Compared with aluminum models, plastic housing units are optimized for smaller loads and more controlled environments, making them ideal for cost-sensitive installations.

Typical power range: 35W to 150W
Output voltage options: 12V / 24V

IP67 Waterproof Protection Technology

All LTW waterproof LED power supplies are designed with IP67 protection rating. This means the product is completely dust-tight and can withstand temporary immersion in water without performance degradation.

The internal potting process fills the entire enclosure with thermally stable resin material, which protects electronic components from moisture, vibration, and corrosion. This structure significantly improves reliability in outdoor installations where long-term exposure to harsh weather conditions is expected.

Output Voltage Selection Guide

Selecting the correct output voltage is essential for system stability and LED lifespan.

• 12V systems are typically used for short LED strip runs and residential lighting applications
• 24V systems reduce voltage drop and are suitable for medium-length installations
• 36V systems are used in extended lighting layouts requiring higher efficiency
• 48V systems are designed for long-distance commercial and architectural lighting projects

Incorrect voltage selection may lead to uneven brightness, reduced efficiency, or premature system failure.

Output Wiring Options: Single Wire vs Dual Wire

Depending on the model, waterproof LED power supplies may support different output configurations.

• Single Wire Output: Designed for simple single-circuit installations, commonly used in standard lighting layouts
• Dual Wire Output: Provides two independent output channels, suitable for zoning or multi-direction lighting systems

Dual output designs are often preferred in larger projects where wiring flexibility and load distribution are required.

Application Scenarios

Waterproof LED drivers are widely used across multiple outdoor lighting environments, including:

• Residential garden and courtyard lighting
• Commercial building façade illumination
• Outdoor signage and advertising systems
• LED strip lighting installations for architectural design
• Landscape lighting in parks, pathways, and public spaces
• Industrial and infrastructure lighting systems

Different applications require different combinations of structure type, power rating, and voltage selection to achieve optimal performance.

Selection Logic Summary

When choosing a waterproof LED power supply, three key parameters should always be considered:

1. Structural system (Aluminum housing or Plastic housing)
2. Output voltage (12V / 24V / 36V / 48V)
3. Power load requirement (based on total LED wattage)

Proper matching ensures stable operation, reduced energy loss, and extended product lifespan in outdoor environments.
